Introduction to XU type belt vacuum filter:

XU type belt vacuum filter is a new energy-saving solid-liquid separation equipment independently developed, designed and produced by our company. This machine uses filter cloth or mesh as the filtering medium, fully utilizes the gravity of materials, and relies on vacuum negative pressure as the power to achieve efficient solid-liquid separation equipment; The machine has a unique design, with a fixed vacuum filter disc that can be filtered in stages and zones, including washing, vibration, hot air drying, and mechanical extrusion. It can solve many problems in the chemical industry. In terms of structure, the filtering section is arranged along the horizontal length direction; The filtration, cake washing, slag unloading, and filter cloth cleaning in the production process can be continuously completed; The equipment can adapt to materials of different concentrations, and the mother liquor and filter cake washing solution can be collected in sections, resulting in excellent washing effects. The equipment can achieve long-term continuous operation, smooth operation, easy operation, and low labor intensity.
Working principle of XU type belt vacuum filter:

The slurry is evenly distributed on the moving filter cloth by the feeding device. Under the filtering effect of the vacuum pump, the filtrate passes through the filter cloth and enters the vacuum box, and then enters the filter tank through the connecting pipe at the bottom of the vacuum box. The solid phase is trapped on the filter cloth to form a filter cake. Due to the consistent direction of gravity and vacuum suction, larger particles settle below the filter cake and smaller particles settle above the filter cake, forming a structurally reasonable filter aid layer with low resistance and high filtration speed. The formed filter cake is washed and dehydrated multiple times with the movement of the filter cloth, and then falls off at the turning point of the filter cloth. The filter cloth is cleaned and regenerated with high-pressure water, and after adjustment by the correction device, it returns to the feeding end to start a new operation cycle.

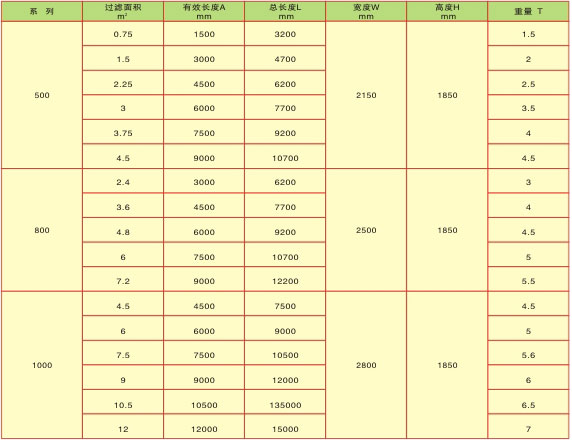

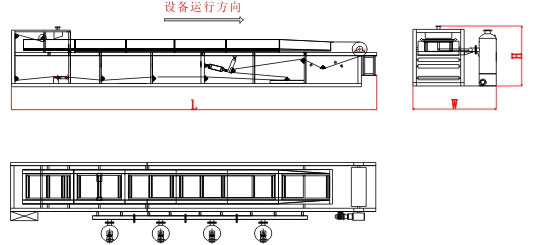

Basic technical parameters of XU type belt vacuum filter:

The XU equipment from Nuclear Xu has solved the dust problem in our environmental protection workshop, with complete sealing compliance and zero malfunctions after two years of operation! Director of Chemical Technology.
